曼谷零碳住宅 IDEO O2景观设计 | Redland-scape.Ltd

Redland-scape.Ltd. 2021-07-27
原创
  • 项目名称:
    零碳住宅 IDEO O2
  • 项目地点:
    曼谷,班纳区
  • 项目规模:
    13.302.99平方米
  • 设计公司:
  • 委托方:
    Ananda Development Public Company Limited.
  • 建成时间:
    2019
  • 图片来源:
    Redland-scape.Ltd

IDEO O2 以推广零碳居民为中心,战略上靠近天空铁车站,从而使公共交通对当地人更具吸引力,以通过减少汽车使用和提高绿色生活水平来缓解邦纳的一些问题。

The IDEO O2, being centered around promoting Zero-Carbon Residents, is strategically close to the Sky train station, thereby making public transportation more attractive to the locals, thus alleviating some of Bangna’s problems by reducing car usage and promoting greener living standards.


Redland 1.jpg

Redland 7.jpg


项目位置在班纳,曼谷东部快速发展的地区之一。班纳因交通、内陆洪水、城市炎热、空气污染以及缺乏绿地和公园而臭名昭著。

The location of IDEO O2 is in Bangna, one of the fast-growing districts in the East of Bangkok. Bangna is infamous for traffic, inland flooding, urban heat, air pollution and absence of green spaces and parks.




在这个位置,设计团队面临着一个挑战,即建筑呈现出长、深、不规则形状和碎片化的建筑单元。在客户和建筑师的合作下,景观设计师团队提出了几个方案,通过垂直堆叠单元,保留现有的树木,最大化的扩展小区的绿化面积。

In this location, the design team faced a challenge of long, deep, irregular shapes of the property and fragmented building units. With the collaboration of clients and architects, the landscape architect team proposed several options to minimize the buildings’ footprint by stacking up the units vertically, saving existing trees and expanding it into the ultimate green space for the residents.

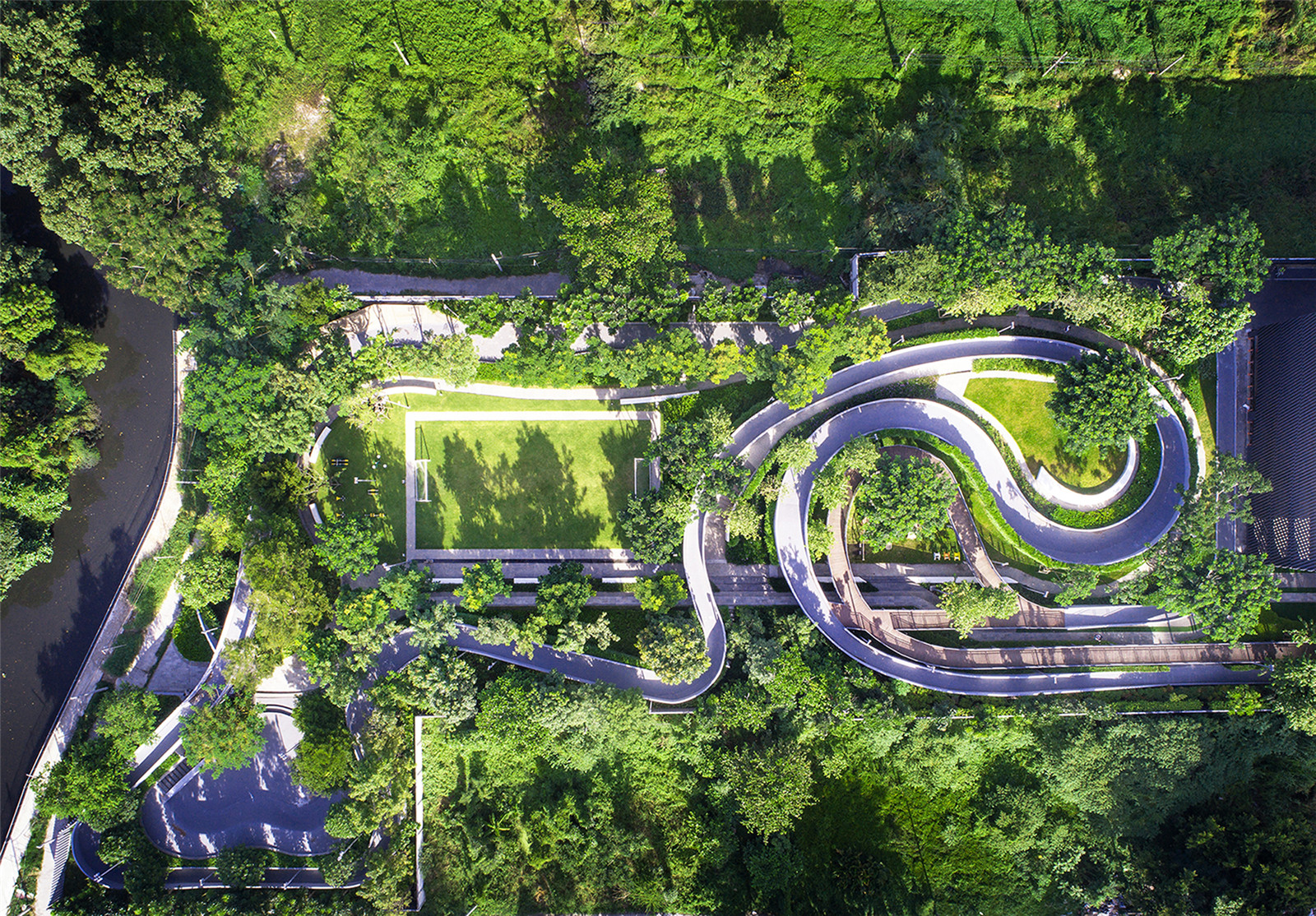

在不规则的狭长空间中,景观设计引入曲线形式,连接开敞空间,隐藏狭窄感。

In the irregular space, long and narrow property, the landscape design introduce the curve formula to connect open spaces and conceal the sense of narrowness.


Redland 6.jpg


为了解决这一挑战,设计团队将水作为一个关键的景观元素,通过诠释水的曲线和动态形式,并将设计与植物材料相结合,从而将城市和自然环境融合在一起。通过曲线姿态,设计团队创造了一个充满活力的空间,欢迎人们来到场地,而不会让他们感到场地的不规则性。

To solve the challenge of the property, the design team used water as a key landscape element, by interpreting the curve and dynamic form of water and integrated the design with plant materials, as a result tiding urban and natural context together. With the curve gesture, the design team creates the dynamic space that welcomes people to the site and will not let them feel the irregularity of the site’s property.


Redland 4.jpg

Redland 7.jpg

Redland 16.jpg

Redland 14.jpg


总体规划延续了O2 =氧气的概念,即提供总面积达60%的户外花园和休闲空间,增加氧气,同时为城市降温。设计团队集中计算了这些地区的碳吸收率。该小组小心地保护了现有的树木。并选择了耐高地下水、耐咸水侵入的天然植物新材料。

The master plan carries on the concept of O2 = Oxygen, that is to provide outdoor gardens and recreational spaces up to 60% of total area, adding oxygen and at the same time cooling down the heat of the city. The design team intensively calculate Carbon absorption rates of the areas. The team carefully preserved the existing trees and chose new plant materials that are native and tolerant of high underground water and salt water intrusion.


Redland 3.jpg

Redland 25.jpg


此外,为了帮助过滤细尘PM 2.5,净化空气质量,植物选择的是毛质粗糙,含有大量小叶子的植物。在这里,你可以看到不同层次的植被,有助于减少空气污染和冷却该地区。为了帮助缓解内陆洪水,该团队建立了种植区、地下排水系统和地下蓄水池来管理该项目的雨水径流。大面积的绿地可以让水渗入地面,减缓水流速度。多余的水将被收集和储存在大雨期间,在夏天这些水可以用来浇灌植物。

In addition, to help filter fine dust PM 2.5 and purify air quality, plants’ selection consists of those with rough hairy texture and contain large amount of small leaves.  Here, you can see various layers of vegetations to help reduce air pollution and cool down the area. To help mitigate the inland flood, the team established planting areas, a sub-drain system and an underground retention tank to manage storm water runoff from the project.  Large green spaces will allow water to infiltrate the ground and slow down the flow rate. Excess water will be collected and stored during heavy rains, in summer this water can be used to water the plants.


Redland 9.jpg

Redland 2.jpg

Redland 12.jpg


IDEO O2是一个独特的创新住宅项目,提供各种令人愉快的设施。让居民在家门口就能享受到令人满意的户外体验,欣赏美丽的大自然,呼吸新鲜空气。谢谢大家!

IDEO O2 is a distinct innovative residential project that provides various pleasant facilities. Giving its residents a satisfying outdoor experience right at their doorstep, as they gaze at beautiful nature and take in fresh air.


Redland 21.jpg

Redland 18.jpg

Redland 17.jpg

Redland 19.jpg


项目概况

项目名称:零碳住宅 IDEO O2

项目地点:曼谷, 班纳区

项目规模:13.302.99平方米

设计公司:Redland-scape.Ltd

委托方:Ananda Development Public Company Limited.

建成时间:2019

图片来源:Redland-scape.Ltd

建筑设计 :ATOM DESIGN Co.,Ltd.

室内设计 :D+S Designs Plus Style Co.,Ltd.

机电工程 :T.T.S. ENGINEERING (2004) CO.,LTD.

土木工程 :T.T.S. ENGINEERING (2004) CO.,LTD.

软质景观 :M.J. Gardens Co.,Ltd.

项目类型 :高层楼住宅

摄影师 :Mr.Rungkit Charoenwat、Mr.Vorrarit Anantsorrarak
